Automated turning
Highly automated bar stock and secondary machining for medium-large sized standard production lots.
Secondary machining:
∅ 160 mm max - 2,5 kg
Bar: ∅ 70 mm max
|
MODEL
|
CHARACTERISTICS
|
CNC CONTROL SYSTEM
|
∅ TURNABLE PIECES - WORKING RANGE
|
|
Mori Seiki ZL 250G
|

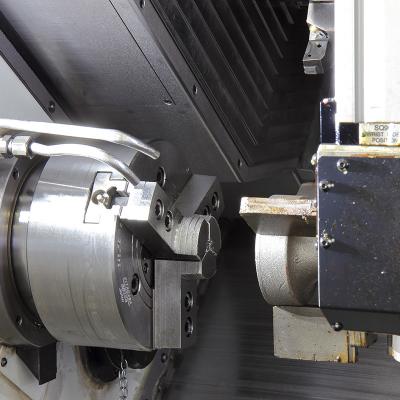

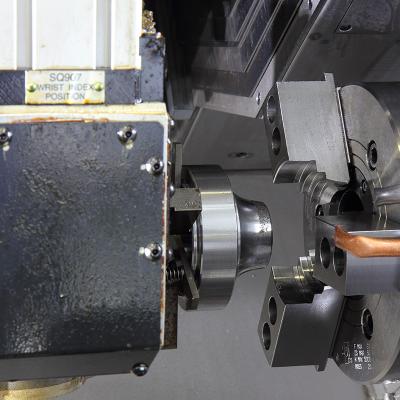

Machines for automatic turning of bars and secondary machining processes with intelligent three-axis CNC gantry servo-loader system
|
Fanuc MSD 501
|
gantry loader Ø 210 mm (no turning bar)
|
|

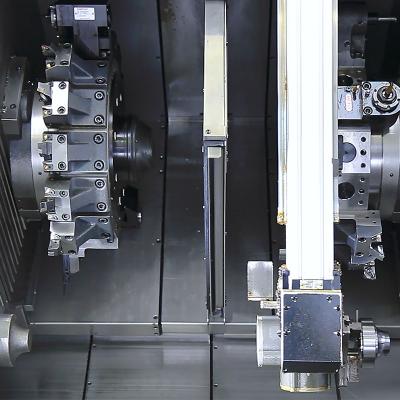

Muratec MT 200 opposed twin spindle
|

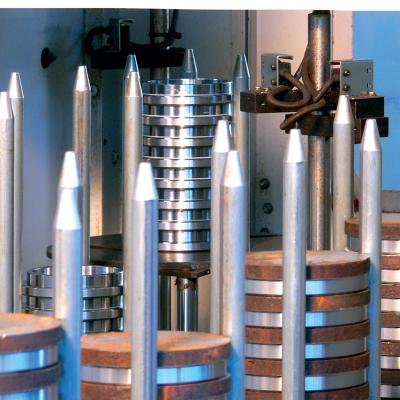

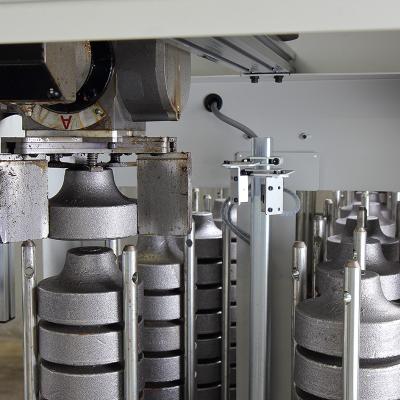

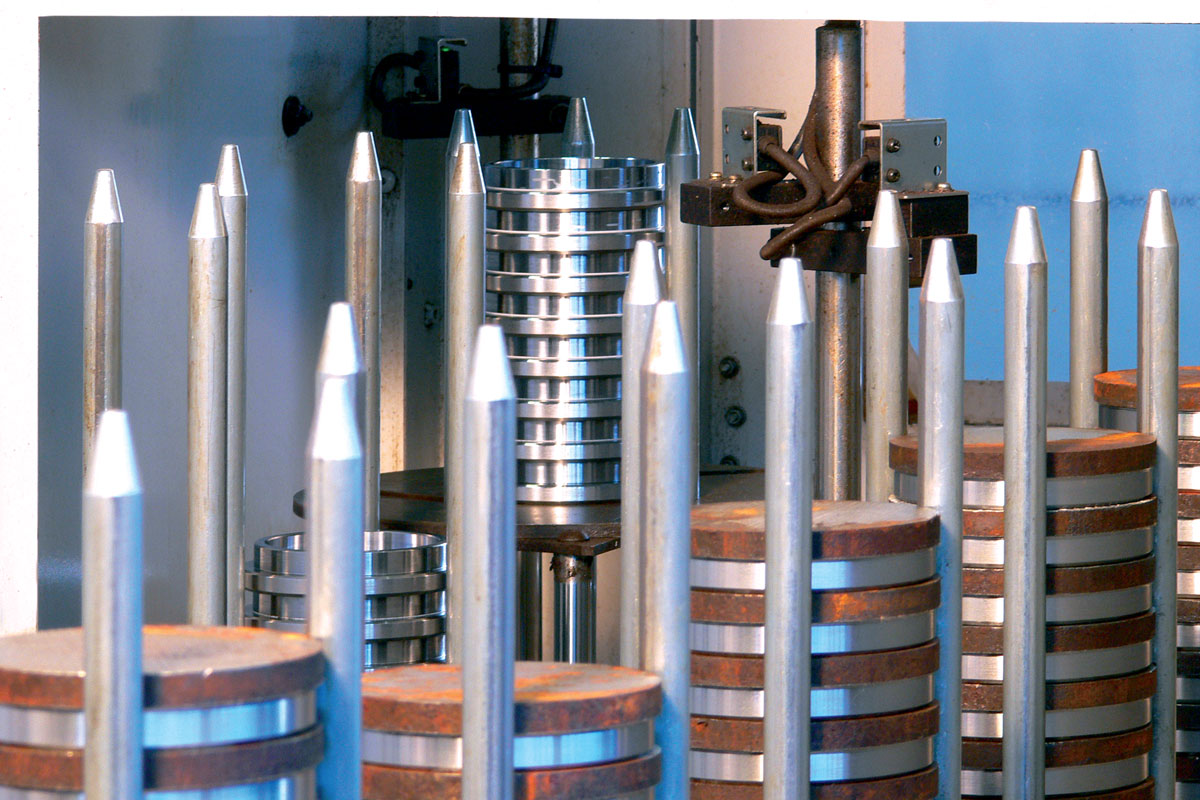

Fanuc 32i-B | Ø max pallet-loadable 30/160 mm max. stacking height 400 mm max. weight on pallet 40 Kg Ø max. 200 x L 260 mm bar passage Ø 60 mm |
|
|
Mori Seiki ZL 25-B
|
Fanuc MSC 516 | ∅ 270 (T1) ∅ 250 (T2) x 1000 bar passage ∅ 71,5 mm |
|
|
Muratec MT 200 opposed twin spindle
|
Fanuc 31it-B | Stacking Feeder Table dimension: Ø 30-160 mm x 400 mm (height) weight: 40 Kg max. Ø250 max , 260 mm length Maximum bar workpiece size Ø 65 mm |
|
|
Muratec MD 200 G frontal twin spindle
|
Fanuc 18i | Ø max 360 mm x L 170 mm Weight can be loaded on a robot arm 12 + 12 Kg. Max Ø loadable Ø 200 x 100 |
|
|
Muratec MD 120 frontal twin spindle
|
Fanuc 31i-A | Ø max 180 mm |
